What Team M4 did?
We have created interactive 3D models of equipment that future space explorers can use for activities such as exploring a lunar or planetary surface.
OUR ROVER
Highly Sustainable and Effective Exploratory Tool
Our goal is to create interactive 3D geology tool for lunar and further planetary exploration . We looked at Apollo-16 press kit to study the microwave instruements used and also the tools astronauts use to explore distant worlds by using remote operation in idealogy of reducing astronaut mobility . Than these tools used to obtain samples and be placed in container and by using transmittor sensor and reciever sensor into rover with arduino based circuit for operations to be done by rover. Our final goal was to come up with a topography (content scanning ) for a particular location and only a specific location with no repeated operations using tools of reduced size for easy access.The underlying exploration driver for this field test was to establish the protocols and technology needed for an eventual manned mission.
Working Principle

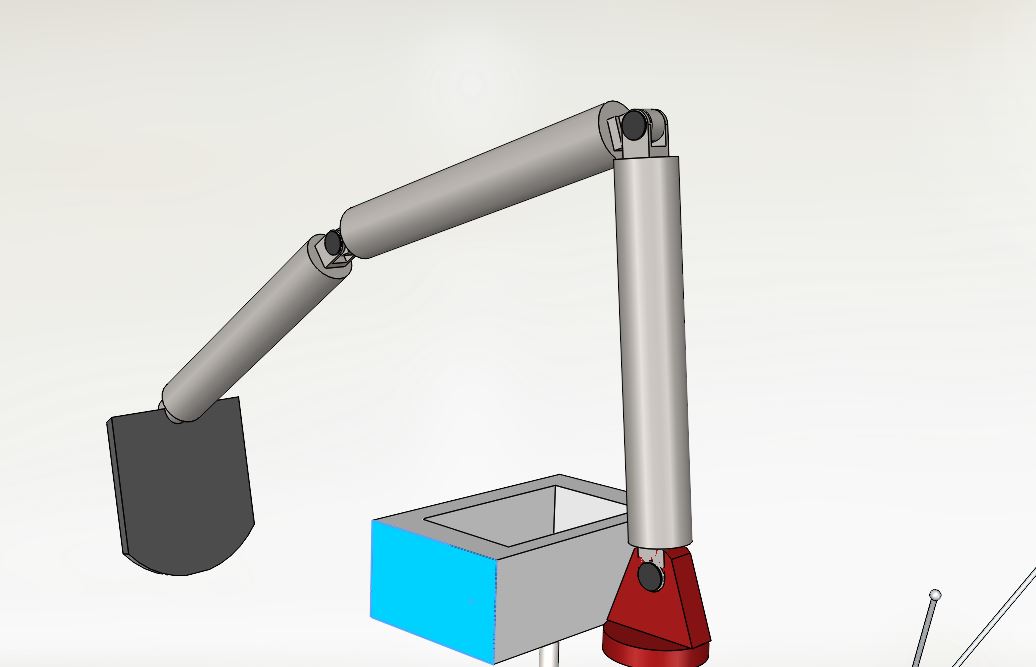

The topography of a surface is studied using LIDAR mechanism where LASER is reflected in 360 degrees. The sand sample for analysis is collected by a robotic arm in a pre-drilled place and is stored in a container. All the operations are done as per the signals received by the antenna.
Advantages
Measurement of topography is made with equipment with reduced size, remote control is brought in so that astronauts can be idle in a place operating the rover
Applications
the rover will also able to collect samples of sand for estimating various properties of it, inaccessible area can be accessed by this rover and so this could access almost all the areas

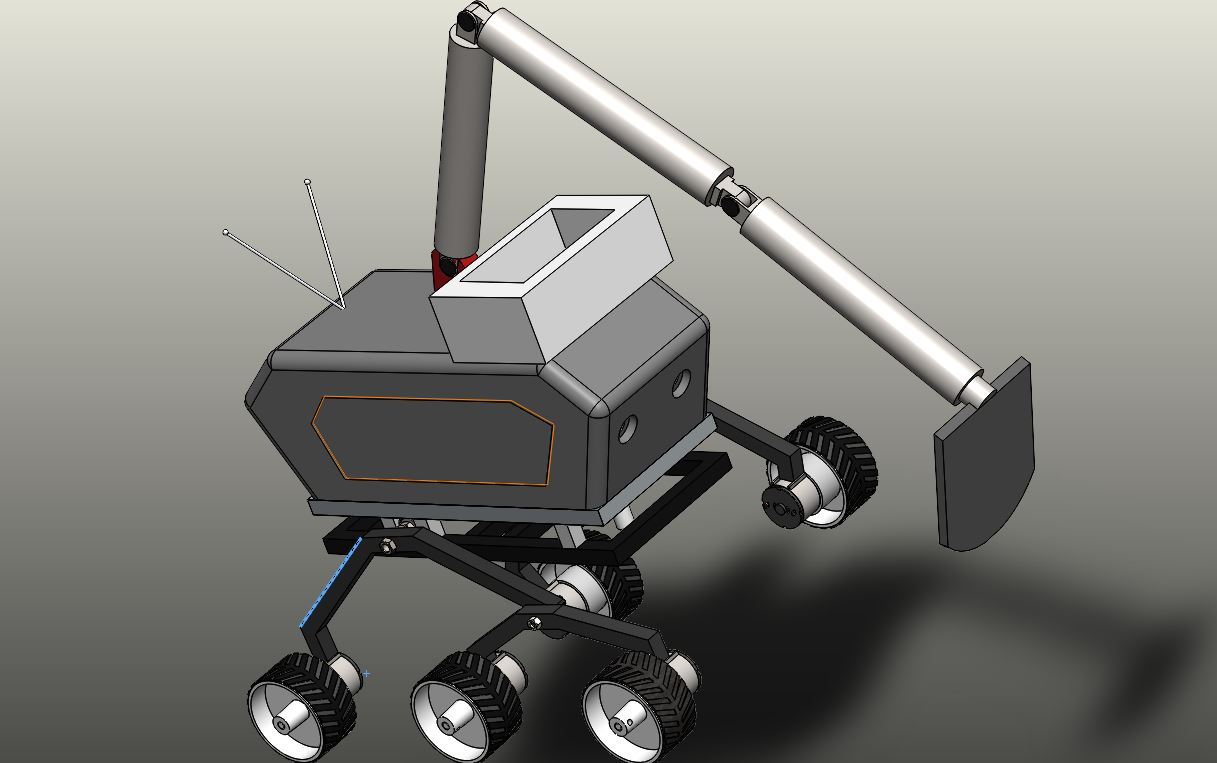

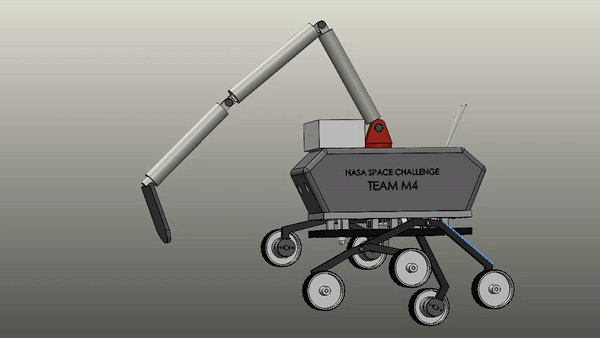

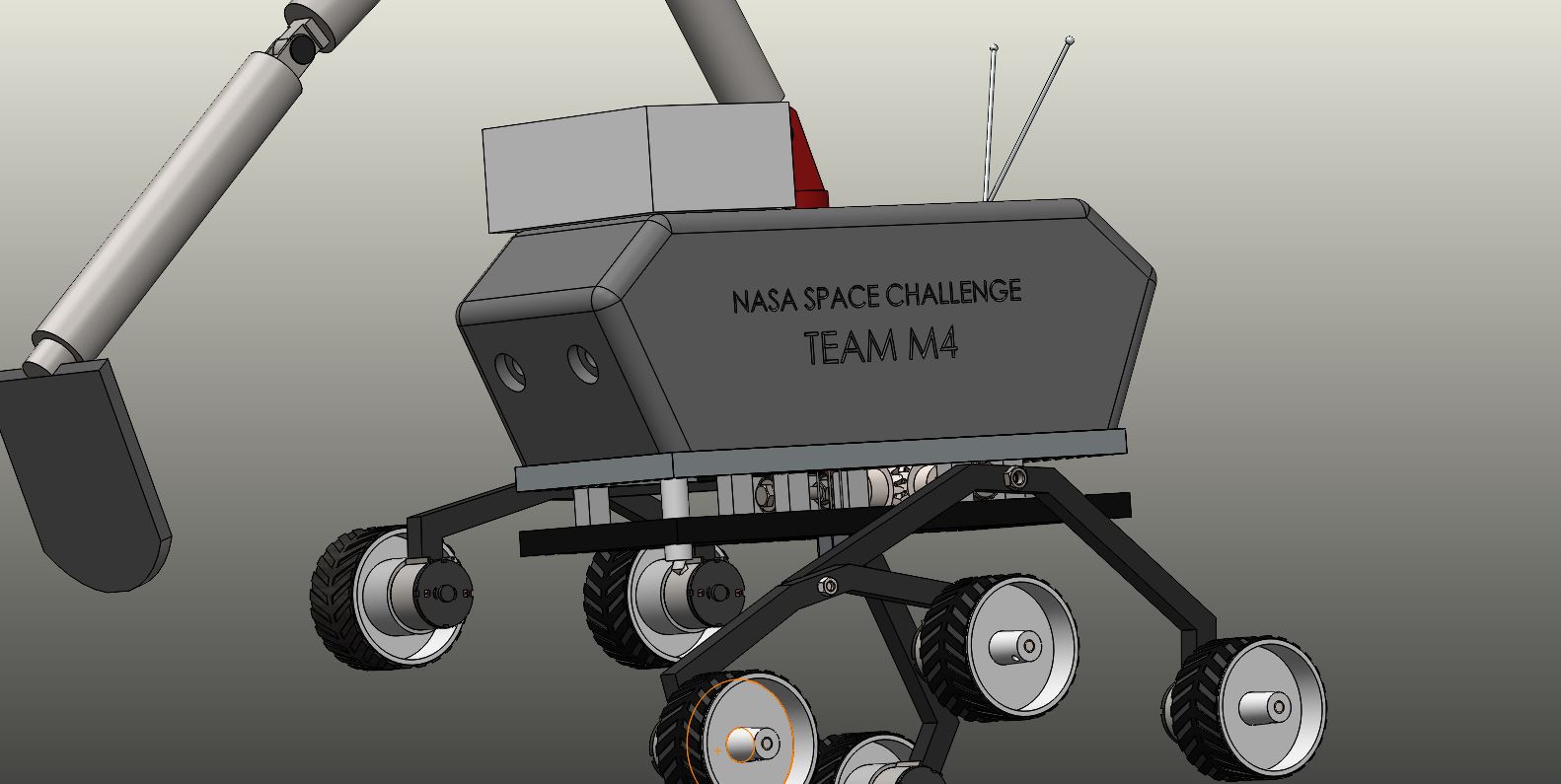

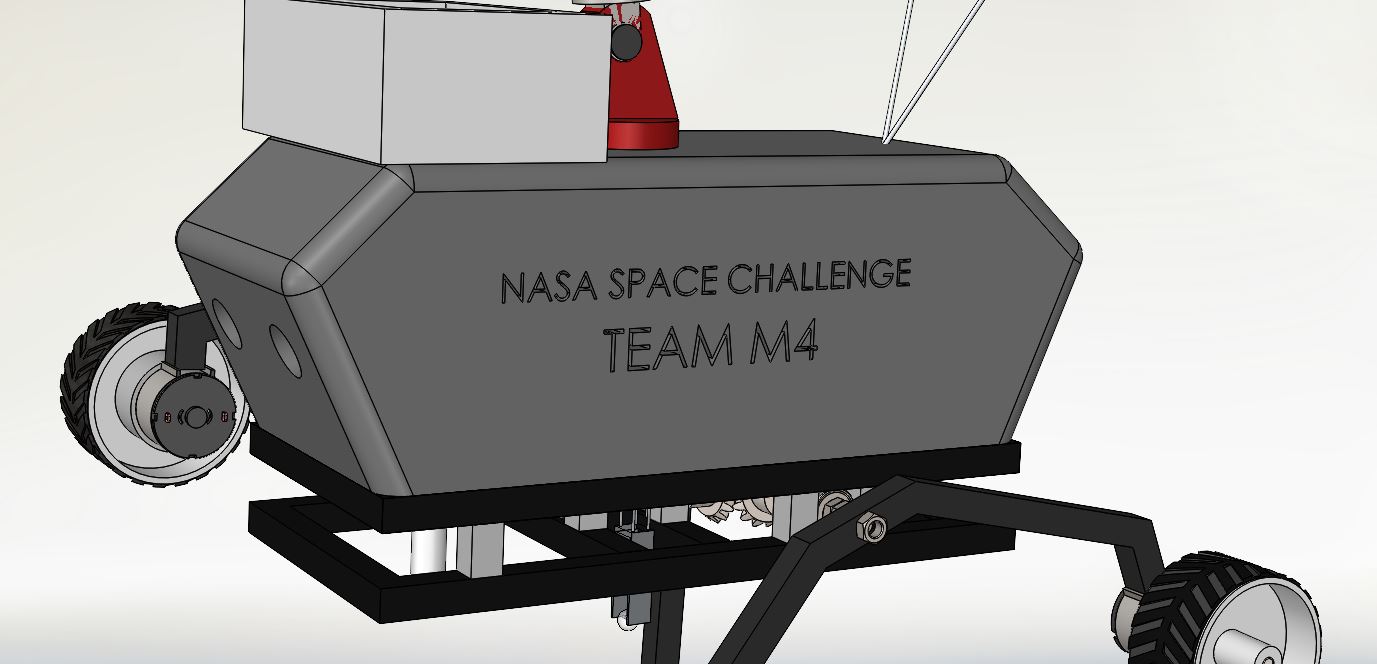

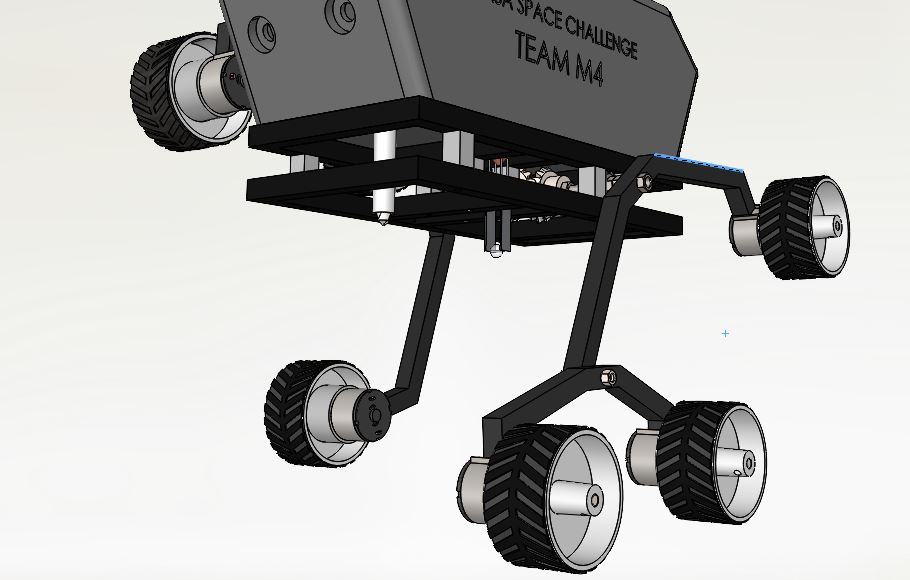

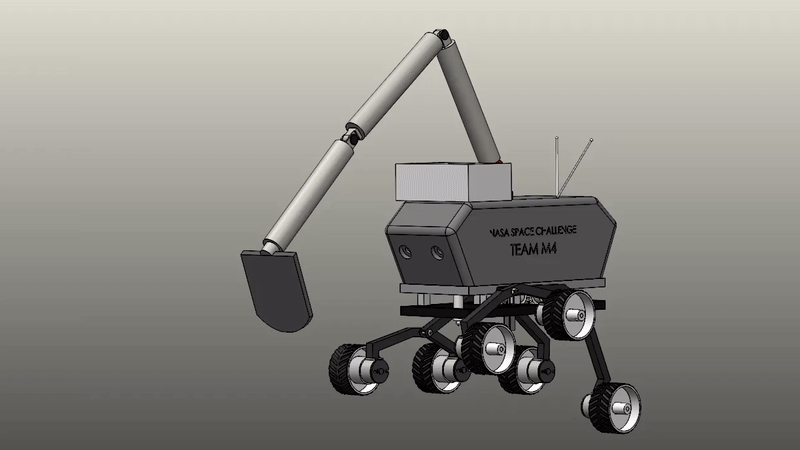

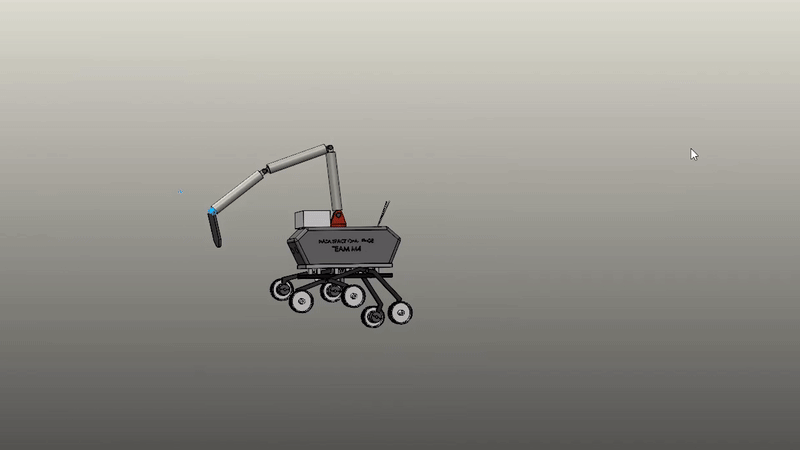

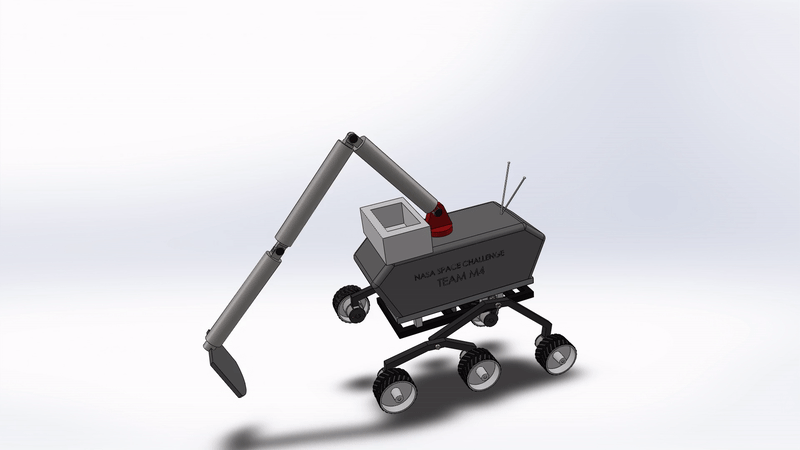

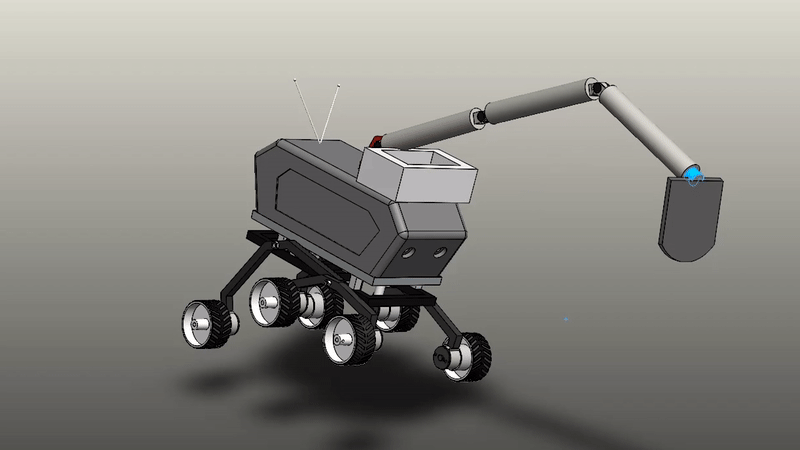

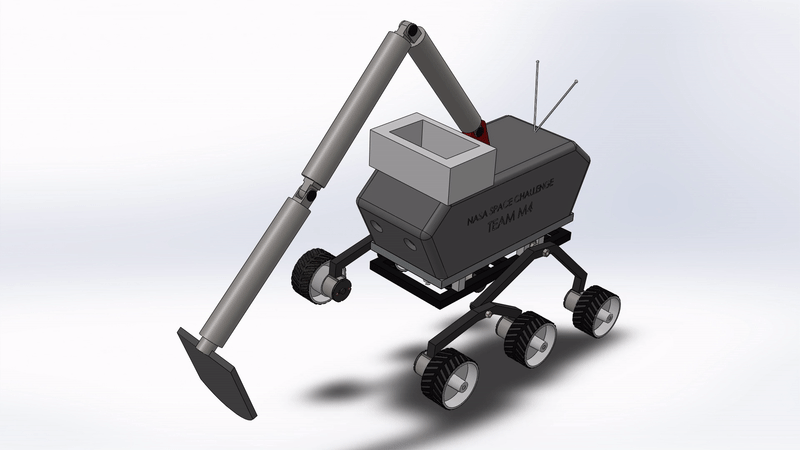

Our Rover Model
We created a rover to analyze topography along with terrestrial soil sampling collection by remote control operation using LIDAR concept.The goal is to create tools of both Apollo style field geology tools and modern technological equipment to establish the technology needed for future manned missions.
Our Mission
The goal is to create tools of both Apollo style field geology tools and modern technological equipment to establish the technology needed for future manned missions.
Our Plan
With a Team of Skilled Engineers we started our project from simple drafting to interative CAD models
Lubin Raj
MECHANICAL ENGINEERING
Mohamed Akheel.M
MECHANICAL ENGINEERING
Ashiffa Sherin
HIGH SCHOOL GRADUATE
Jahnavi
ELECTRICAL ENGINEERING
Mohamed Ibrahim
MECHANICAL ENGINEERING
